This pump is suitable to carry various oils,such as the thick oil,diesel fuel and lubricator,animal and vegetable oil etc.alsoit’s available to transport the fluidities with low flashing point by equiped with copper,gear,such as gasolene and benzene,etc.Take care that the media temperature shouldn’t surpass 70℃ and the available temperature of oilpump against hitemper-ature shouldn’t more than 300℃.The pump has safety valve itself when the pump works under the high pressure.Shaft seal has skeleton oil seal.Mechanical seal and stuffing seal.Please it should be indicuted when placing order.
|

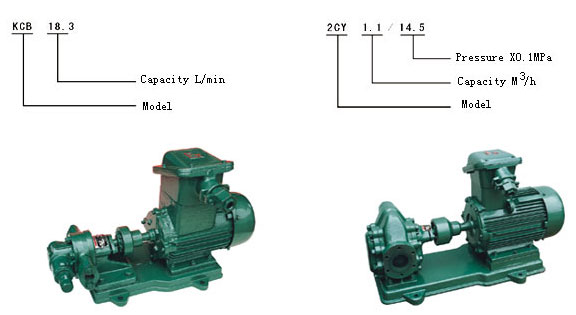

Model
|
Capacity
m 3 /h |
Pressure
MPa |
Vaccum
m.H20 |
Diameter
mm |

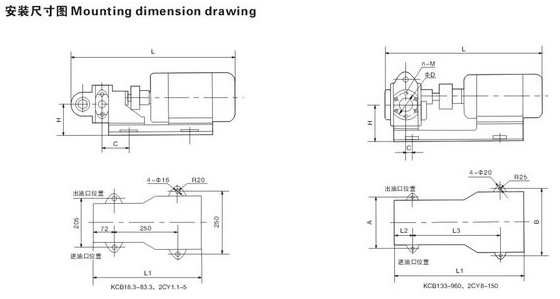

H
|
L
|
L1
|
L2
|
L3
|
A
|
B
|
C
|
D
|
n-m
|
Distance
K |
Motor
|
|
|
KCB18.3
2CY1.1/14.5 |
1.1
|
1.45
|
5
|
G3/4"
|
109
|
583
|
405
|
72
|
250
|
205
|
250
|
79
|
-
|
-
|
200
|
Y90L-4
|
1.5
|
|
KCB33.3
2CY2/14.5 |
2
|
1.45
|
5
|
G3/4"
|
119
|
618
|
437
|
72
|
250
|
205
|
250
|
79
|
-
|
-
|
200
|
Y100L 1 -4
|
2.2
|
|
KCB55
2CY3.3/3.3 |
3.3
|
0.33
|
5
|
G1"
|
109
|
588
|
405
|
72
|
250
|
205
|
250
|
86
|
-
|
-
|
200
|
Y90L-4
|
1.5
|
|
KCB83.3
2CY5/3.3 |
5
|
0.33
|
5
|
G1 1 /2"
|
119
|
658
|
437
|
72
|
250
|
205
|
250
|
99
|
-
|
-
|
200
|
Y100L 2 -4
|
2.2
|
|
KCB133
2CY8/3.3 |
8
|
0.33
|
5
|
G2"
|
182
|
778
|
688
|
130
|
450
|
250
|
340
|
32
|
-
|
-
|
260
|
Y132S-6
|
3
|
|
2CY8/6
|
8
|
0.6
|
5
|
G2"
|
182
|
818
|
688
|
130
|
450
|
250
|
340
|
32
|
-
|
-
|
260
|
Y132M 1 -6
|
4
|
|
2CY8/10
|
8
|
1.0
|
5
|
G2"
|
182
|
818
|
688
|
130
|
450
|
250
|
340
|
32
|
-
|
-
|
260
|
Y132M 2 -6
|
5.5
|
|
2CY12/1.3
|
12
|
0.13
|
5
|
G2"
|
172
|
703
|
576
|
130
|
370
|
250
|
305
|
32
|
-
|
-
|
260
|
Y112M-4
|
4
|
|
KCB200
2CY12/3.3 |
12
|
0.33
|
5
|
G2"
|
182
|
778
|
688
|
130
|
450
|
250
|
340
|
32
|
-
|
-
|
260
|
Y123S-4
|
5.5
|
|
2CY12/6
|
12
|
0.6
|
5
|
G2"
|
182
|
778
|
688
|
130
|
450
|
250
|
340
|
32
|
-
|
-
|
260
|
Y123S-4
|
5.5
|
|
2CY12/10
|
12
|
1.0
|
5
|
G2"
|
182
|
818
|
688
|
130
|
450
|
250
|
340
|
32
|
-
|
-
|
260
|
Y132M-4
|
7.5
|
|
KCB300
2CY18/3.6 |
18
|
0.36
|
5
|
70
|
187
|
898
|
723
|
120
|
480
|
280
|
340
|
45
|
123
|
6-M14
|
234
|
Y132M 2 -6
|
5.5
|
|
2CY18/6
|
18
|
0.6
|
5
|
70
|
242
|
983
|
912
|
155
|
600
|
280
|
380
|
30
|
123
|
6-M14
|
234
|
Y160M-6
|
7.5
|
|
KCB483
2CY29/3.6 |
29
|
0.36
|
5
|
70
|
187
|
898
|
723
|
120
|
480
|
280
|
340
|
45
|
123
|
6-M14
|
234
|
Y132M-4
|
7.5
|
|
2CY29/6
|
29
|
0.6
|
5
|
70
|
242
|
983
|
912
|
155
|
600
|
280
|
380
|
30
|
123
|
6-M148
|
234
|
Y160M-4
|
11
|
|
KCB633
2CY38/2.8 |
38
|
0.28
|
5
|
100
|
230
|
1094
|
912
|
155
|
600
|
280
|
380
|
60
|
158
|
8-M16
|
280
|
Y160L-6
|
11
|
|
2CY38/6
|
38
|
0.6
|
5
|
100
|
286
|
1224
|
943
|
150
|
650
|
360
|
360
|
65
|
158
|
8-M16
|
280
|
Y200L 2 -6
|
22
|
|
KCB960
2CY60/3 |
60
|
0.3
|
5
|
100
|
230
|
1159
|
955
|
155
|
650
|
280
|
410
|
60
|
158
|
8-M16
|
280
|
Y180L-4
|
22
|
|
2CY100/3
|
100
|
0.3
|
5
|
150
|
440
|
1586
|
1325
|
110
|
550×2
|
450
|
450
|
-20
|
210
|
8-M16
|
400
|
Y250M-8
|
30
|
|
2CY100/6
|
100
|
0.6
|
5
|
150
|
465
|
1856
|
1536
|
138
|
420×3
|
600
|
600
|
8
|
210
|
8-M16
|
400
|
Y315S-8
|
55
|
|
2CY120/3
|
120
|
0.3
|
5
|
150
|
440
|
1586
|
1325
|
110
|
550×2
|
450
|
450
|
-20
|
210
|
8-M16
|
400
|
Y250M-8
|
30
|
|
2CY120/6
|
120
|
0.6
|
5
|
150
|
465
|
1856
|
1536
|
138
|
420×3
|
600
|
600
|
8
|
210
|
8-M16
|
400
|
Y315S-8
|
55
|
|
2CY150/3
|
150
|
0.3
|
5
|
150
|
460
|
1696
|
1376
|
138
|
550×2
|
500
|
500
|
8
|
210
|
8-M16
|
400
|
Y280S-8
|
37
|
|
2CY150/6
|
150
|
0.6
|
5
|
150
|
465
|
1946
|
1536
|
138
|
420×3
|
600
|
600
|
8
|
210
|
8-M16
|
400
|
Y315M 1 -8
|
75
|
Note: 1. The value in the table is under 50℃, 30C. S. t.
2. KCB18.3-200、2CY1.1-12 have with waisf flange; KCB300-960、2CY18-150 havn＇t with flange, so user need do it.
